Bridge Deck Inspections

GPR DATA INC. provides bridge deck condition assessment and analysis, bridge deck inspections and bridge testing using various combinations of Ground Penetrating Radar (GPR) air-coupled or ground-coupled antennas, and/or Infrared (IR) cameras. Often this data can be collected at highway speeds preventing lane closures.

Get a Quote

GPR Data Services Provide:

100% deck area coverage for accurate comprehensive data
Data collected at driving speeds—multiple surveys conducted in one day
Data produced electronically—for import into GIS or CAD systems
Non-destructive inspection—more cost effective than conventional methods
Data is stacked and integrated to produce high resolution output presentations
Evaluation of deterioration quantities
Depth of rebar
Assessment of corrosion
Concrete compressive strength
Measurement of overlay thickness
Quality control of rebar placement
As built records

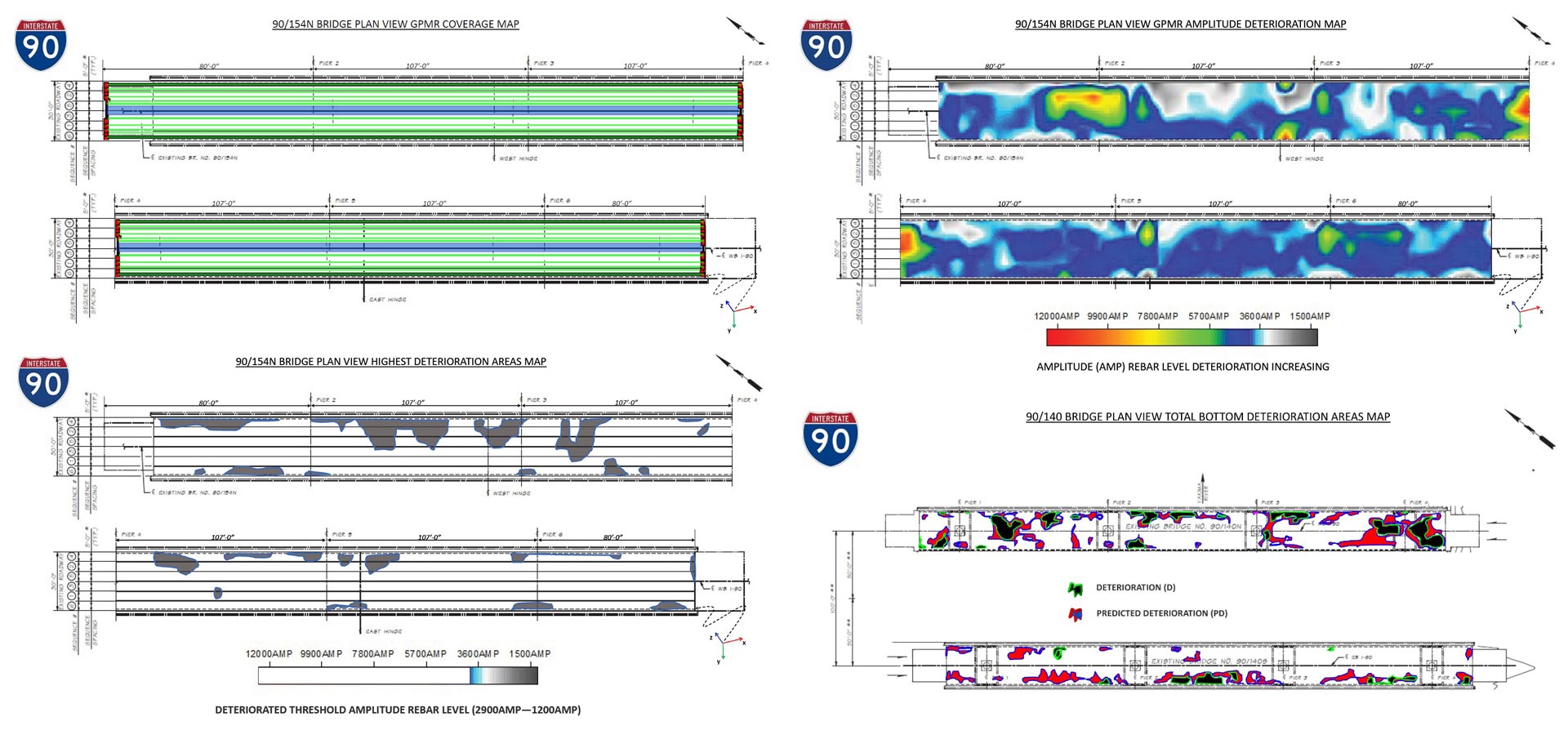

Ground Proof Delamination/Deterioration

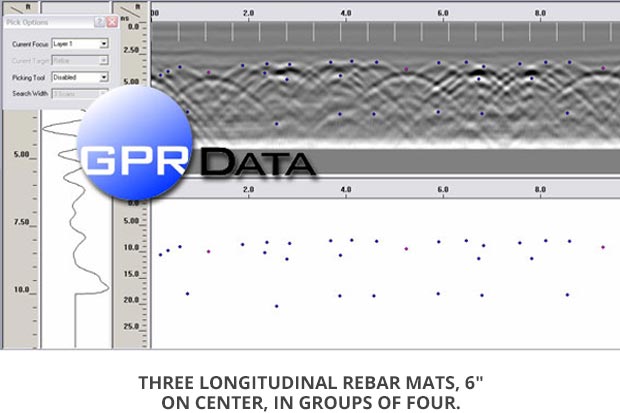

Bridge Rebar Inspection

Bridge deck mapping of rebar, and rebar inspection
Core locations
Overlay thickness measurements
Deterioration boundaries within reinforced concrete deck from chloride-induced corrosion
Bridge beam rebar inspection
Concrete condition for rehab planning
Post tension mapping
Delamination, Cracks, Fractures

Specialty Expertise

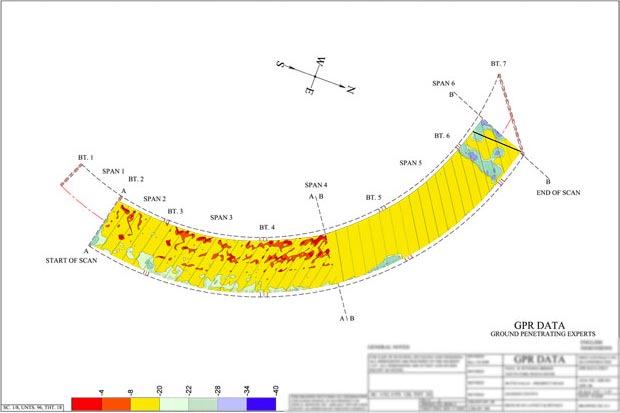

When your job presents unusual or difficult circumstances, we’re the provider for you. For instance, we can scan, map, and accurately reproduce plans for extremely curved decks.
